HUSQVARNA 122RJ

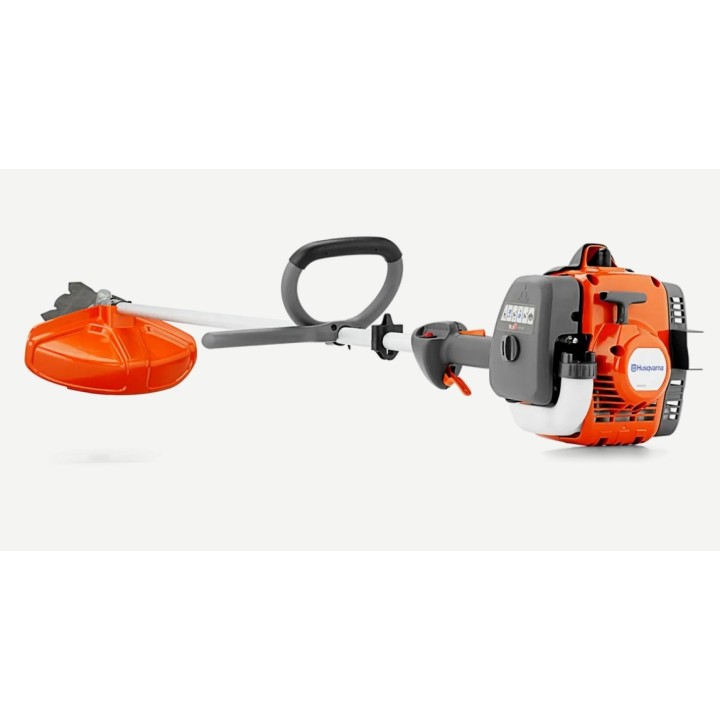

The Husqvarna 122RJ brushcutter
allows you to efficiently cut grass
and remove tall grass or brushwood easily.
This brushcutter
is equipped with a grass blade and allows for comfortable use
comfortable thanks to its light weight and 22 cc engine.
Equipped with Smart Start, which ensures
a quick start with minimal effort.
The user experience is also enhanced
by the intuitive controls and the
stop switch with automatic return,
which is automatically returned
to the ON position after use.

SPECIFICATIONS:
Displacement : 21.7 cc
Power output : 0.6 kW
Fuel tank volume: 0.3 l
Fuel consumption: 630 g/kWh
Speed at maximum power: 7,800 rpm
Idle speed: 2,800 rpm
Maximum output speed, shaft: 7,200 rpm
Electrode gap: 0.5 mm
Clutch engagement speed: 4,200 rpm
Torque, max: 0.8 Nm
Torque, max at rpm: 6,000 rpm
Spark plug: Husqvarna HQT-4 672201
Handle Type: Ring
Control: Connectivity Not applicable
Cutting width: 43 cm
Bevel torque ratio: 0.68
Guide gear angle: 30 degrees
Tube diameter: 25.4 mm
Weight (excluding cutting unit): 4.7 kg
Tube length: 1,483 mm
Lubricant: Husqvarna 2-stroke lubricant type or equivalent at 50:1
Lubricant type (bevel gear): Mineral grease

PART NUMBER: 970 73 25-01
 9707325-01
