ROBOT LAWN MOWER

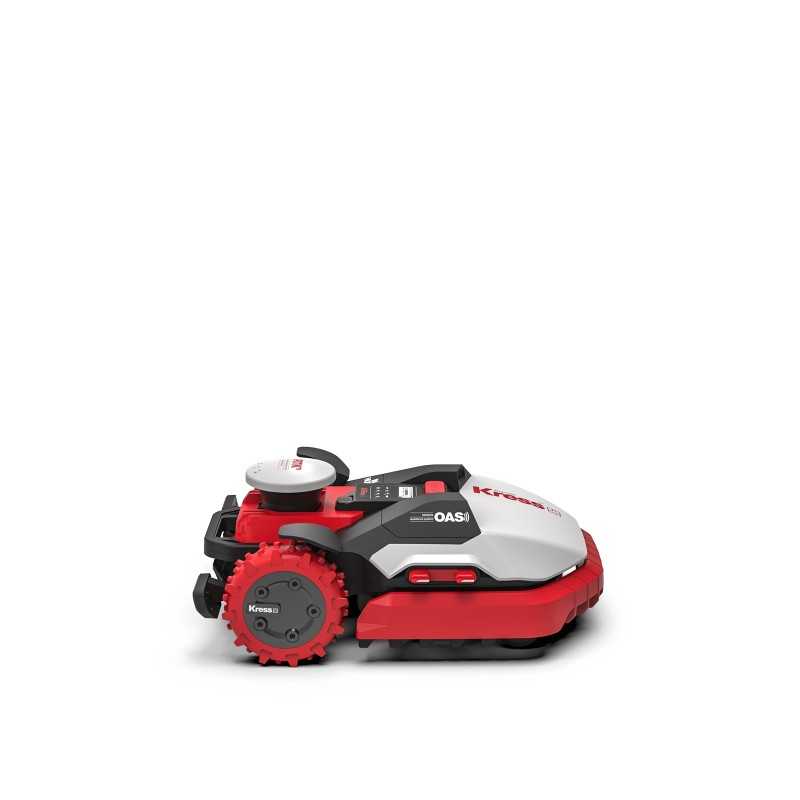

KRESS KR236E



The new Kress KR236E robotic lawnmower

RTKn offers accuracy

absolute without additional hardware

on your property. No antennas.

No beacons. No border cables.



Precision mowing with RTK

RTK is a cutting-edge geo-positioning technique

which tunes satellite signals to obtain

unprecedented precision.



Uninterrupted precision in the shade

If satellite signals are obstructed by buildings or trees,

Kress lawnmowers go into dead mode

reckoning to maintain a precise path,

until it becomes available again

a clear satellite connection.



Satellite-guided centimeter precision

The advanced antenna network of the Kress base station

transmits precise correction data directly

to each lawnmower, ensuring a

unparalleled precision in cutting

of every single blade of grass.



Master of complexity

Guided by satellites, the Kress RTKn is capable

to navigate complex landscapes and also follow

the most tortuous routes from one area to another.



Maintain control

The Kress app can manage up to 10 lawnmowers

robots at the same time.

For the supervision of operations of

extensive maintenance, at the beginning of the

Spring is coming, the specialized app

in fleet management.



Automatic blade leveling system

The floating blade deck automatically adjusts

to the irregularities of the terrain,

ensuring a uniform cut

and preventing turf scalping.



TECHNICAL SPECIFICATIONS

Low inertia blades: Yes

Front wheels: 2

USB: Yes

RBS - Brake System Charging: Yes

Freewheel motor: Yes

Weight: 21.5 kg

4G: Yes

Battery voltage: 20V

Auto Lock: Yes

Anti-theft system: Yes

Maximum area (cut every 72 hours): 36,000 m2

Electric fence: Yes

Double disc: Yes

Double-layer blades: Yes

Quick Return: Yes

Teamwork: Yes

Navigation model: Systematic

Recommended area (mowing every 48 hours): 24,000 m2

OAS - Obstacle Avoidance System: Yes

OTA (Over-The-Air): Yes

Mowing speed: 0.8 m/s

Battery capacity: 10 Ah

Maximum gradient: 40%

Fleet Management: Yes

Water protection index (IP code): IPX5

Weatherproof: Yes

Display: LCD

App: Yes

Rain sensor: Yes

Lift sensor: Yes

PIN Code: Yes

Self-leveling blade disc: Yes

Cutting blades: 12

Cutting height adjustment: Electronic

Cutting width: 35 cm

Charging current: 20 A

Cutting height: 30 - 60 mm

Side loading: Yes

Cutting Methods: Logic

Voltage: 20 V

Perceived sound level: 68 dB

Size: 762x555x296 mm



INCLUDED IN THE PACKAGE

Charging base: 1

RTK Antenna: 1

Magnetic strip: 1

Hex keys: 1

Charging Tower: 1

RTK antenna key: 1

Meter: 2

Hex screwdriver: 1

Screws: 6

Blade fixing screws: 36

Charging base fixing nails: 8

Replacement blades: 36

Battery (KA3210.1): 1

Kress Mission Mega RTKn KR236E: 1

Charger (KA3722/KA3723): 1





CODE:KR236E
