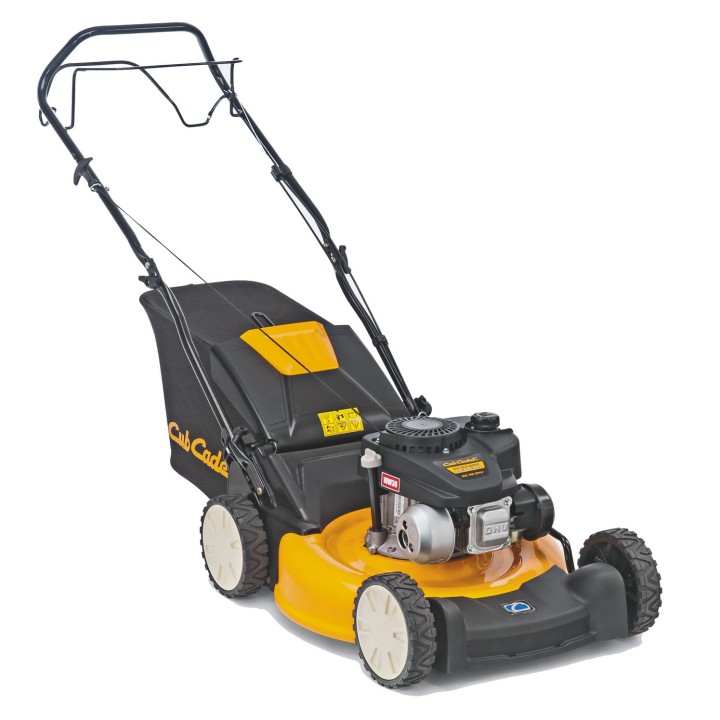

CUB CADET LM1 CR53 CUB CADET RARE MOWER TECHNICAL DATA MODEL ENGINE CUB CADET 45 OHV CILINDRATE 140 cc NOMINAL POWER 2.1 kW / 2800 min START MANUAL START TANK CAPACITY 1.0 l TRANSMISSION Yes, rear DRIVE NUMBER 1 SPEED (max) 3, 6 km/h INDICATIVE HORIZONTAL SURFACE 950 m /h SHELL (material) steel CUTTING WIDTH 53 cm CUTTING OPTIONS 3-in-1 CUTTING OPTIONS 6-position / centralised CUTTING HEIGHT ADJUSTMENT (min-max) 28-92 mm COLLECTION as standard MULCHING KIT optional (196-588- 678) LATERAL DISCHARGE / REAR DISCHARGE WITHOUT COLLECTION as standard CLOTH COLLECTION SACCE CAPACITY 70 L FULL SACCE INDICATOR / WHEELS (A/P) 200 mm / 200 mm DOUBLE SPHERE BEARINGS as standard WASHING NOZZLE as standard Ergonomic handle FOLDING HANDLE as standard ADJUSTABLE HANDLE as standard WRAP COVERING Soft- Grip LpA/LwAg (db) 86/96/98 HAND/HANDLE INCERTAGE VALUE / K-factor 5, 0 / 1.5 m/s DIMENSIONS (WxLxH) 162 x 58 x 114 cm NET WEIGHT 34 Kg CHARACTERISTICS The Cub Cadet LM series has many features that reduce the stress associated with mowing operations: - the easy-to-empty sack - the ergonomic handle - the central height adjustment system - the ball-bearing wheels that offer a high level of comfort The OHV engine provides the right power for every need In addition, with this series it is possible to choose between grass collection and grass-cutting discharge To convert the mower from discharge mode to mulching mode simply insert the mulching plug, available as an accessory CODE: 12D-PQSC603 EM
